The Canadian High-Pressure Locomotive.

Updated: 25 June 2003
Back to Home PageBack to The Loco Index

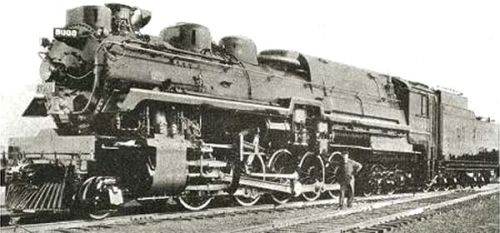

Left: The CPR 2-10-4 compound locomotive of 1931. No 8000.

No 8000 was a three cylinder compound high-pressure experiment built for the Canadian Pacific Railroad.

The Schmidt High-pressure System was used; as in other applications it worked fairly well but high maintenance costs outweighed any efficiency savings.

The Schmidt High-pressure System used a closed-circuit of steam and distilled water working at 1,350 psi, transferring heat to an HP boiler working at 850 psi pressure to supply the center cylinder. The exhaust steam from this was mixed with 250 psi pressure steam from the LP boiler to feed the two outside cylinders.

The locomotive was built by Angus Shops in 1931 and was the Canadian Pacific's heaviest steam locomotive. It operated on the Mountain Subdivision of the CPR from 1931 to 1936, but was scrapped in 1940.

In the USA the 2-10-4 wheel configuration was called the "Texas" type, but the CPR used the term "Selkirks" after the range of the Rockie mountains that the Railway crossed.
